by Mat Dirjish

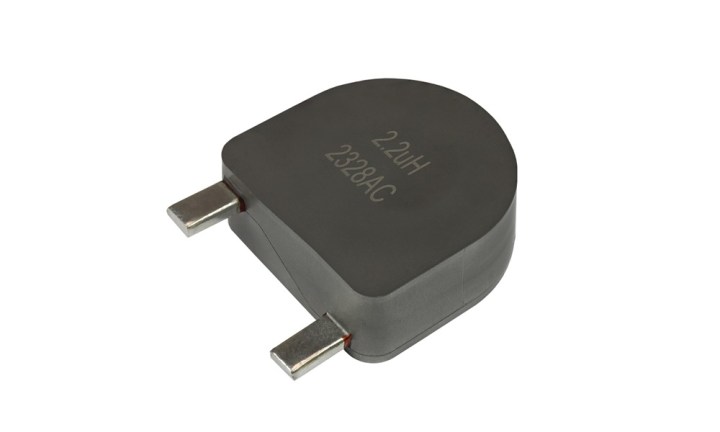

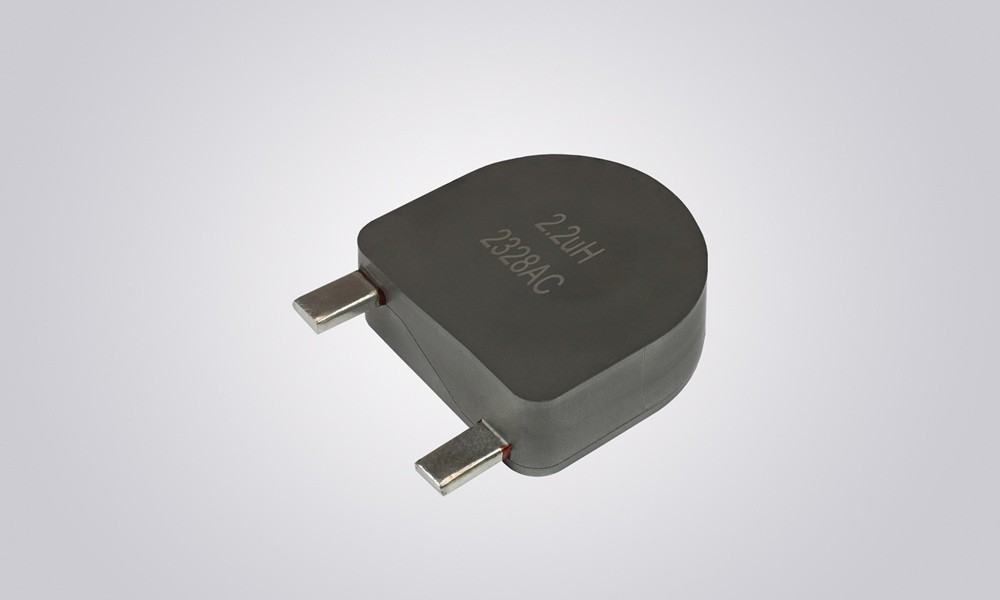

Vishay Intertechnology’s IHXL Series through-hole inductors now offer current ratings up to 209A and boast a 20% improvement in core losses. In addition to improving core losses, the component’s new iron alloy core material reduces temperature rise.

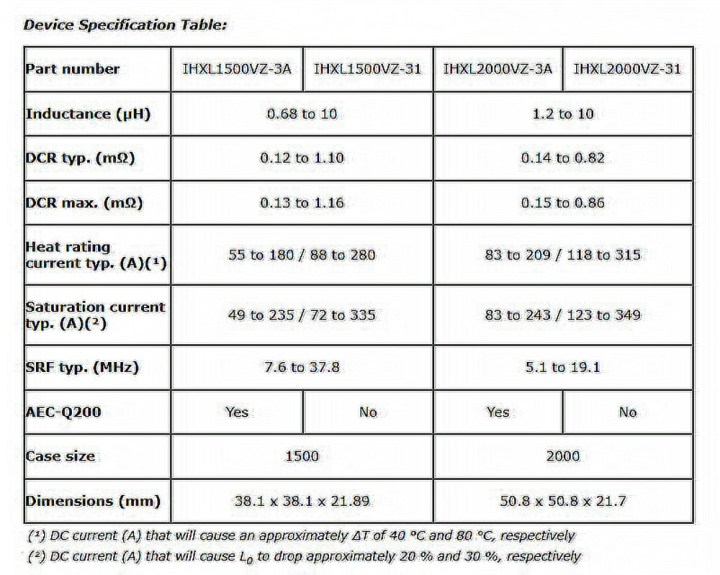

The automotive grade IHXL1500VZ-3A and IHXL-2000VZ-3A and commercial IHXL1500VZ-31 and IHXL-2000VZ-31 operate in temperatures up to +155°C. Available at a lower price point than previous-generation IHXL components, the inductors are available with higher inductance values up to 10 µH.
The IHXL1500VZ-3A, IHXL1500VZ-31, IHXL-2000VZ-3A, and IHXL-2000VZ-31 feature a magnetically shielded construction with a pressed powdered iron body that contains stray flux. This construction also offers low internal thermal resistance while a flat-top surface simplifies mounting of external heatsinks.
The latest IHXL series inductors are available now with lead times of 14 weeks. For greater gleanings, procure and peruse the IHXL1500VZ-3A, IHXL1500VZ-31, IHXL2000VZ-3A, and IHXL2000VZ-31 datasheets.
