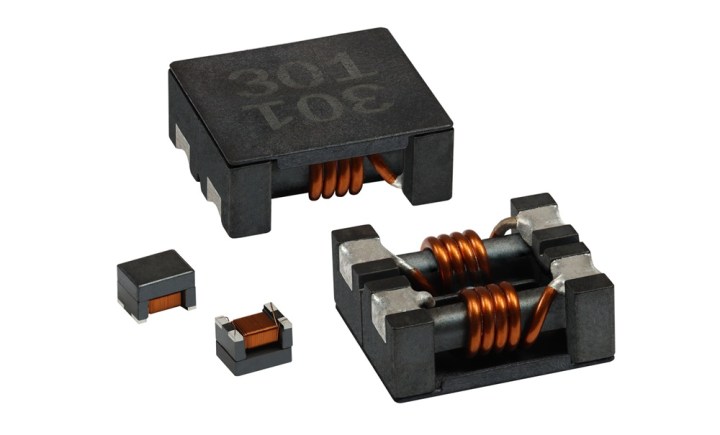

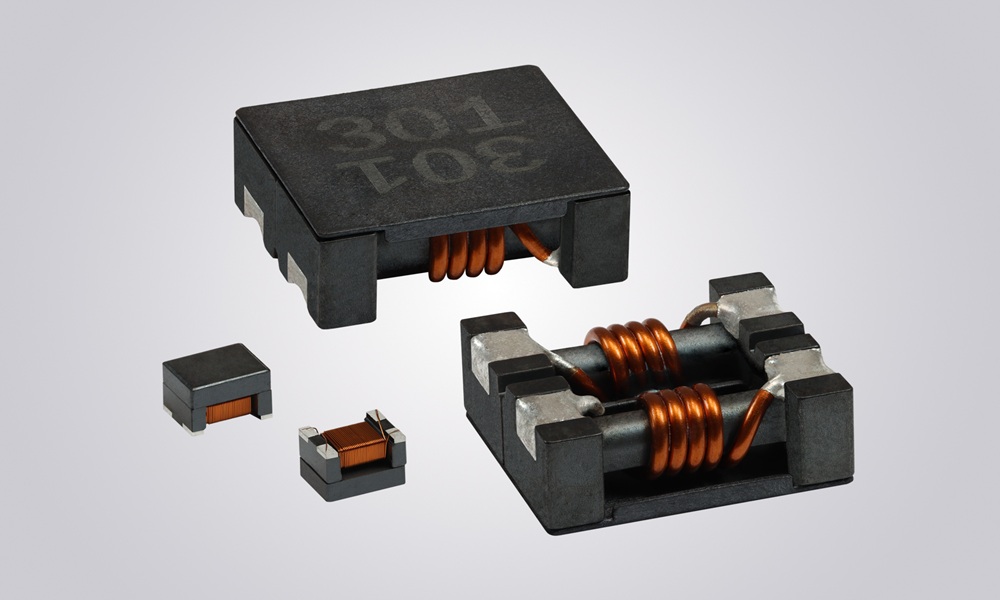

Claiming to trim automotive design footprints while increasing efficiency, Vishay Intertechnology’s surface-mount ICM5050-A, ICM6050-A, IFLN-1210BE-A, and IFLN-1812CZ-A automotive-grade, common-mode chokes are available in compact case sizes. Depending on the component, these include 5050, 6050, 1210, and 1812 case sizes.

The ICM5050-A and ICM6050-A wire-wound ferrite common mode chokes specify current ratings up to 11A in the 5050 case size and 14A in the 6050 case size. Measuring 12 mm x 11 mm x 6 mm and 15 mm x 13 mm x 6 mm, respectively, the devices replace larger toroidal common mode chokes, which reportedly measure 19 mm x 30 mm x 28 mm.

Also ferrite common mode chokes, the IFLN-1210BE-A and IFLN-1812CZ-A specify a common mode impedance up to 11 kΩ at 100 MHz in 1210 and 1812 case sizes. Shared specs of the four components include an operating temperature range up to +150°C and DCRs from 0.4 mΩ to 12 mΩ.

RoHS-compliant and halogen-free, the chokes are suitable for reflow soldering and compatible with automated pick and place assembly. Samples and production quantities are available now with lead times of 10 to 12 weeks. For greater enlightenment, procure and peruse the ICM5050-A, ICM6050-A, IFLN-1210BE-A, and IFLN-1812CZ-A datasheets. | info@matdirjish.com |
