by Mat Dirjish

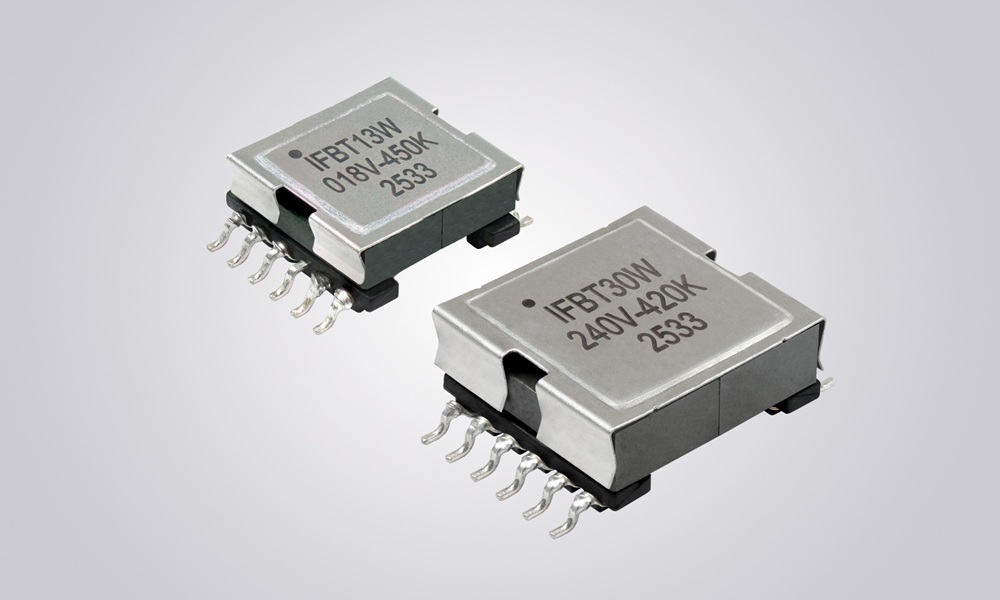

Expanding the company’s power transformer portfolio, Vishay Intertechnology’s IFBT series of customizable, surface-mount flyback transformers includes 17 components featuring a wide 26V to 72V input voltage range at 250 kHz. Additionally, they provide an isolation of 1.5 kVRMS for 60 seconds from primary and bias windings to secondary.

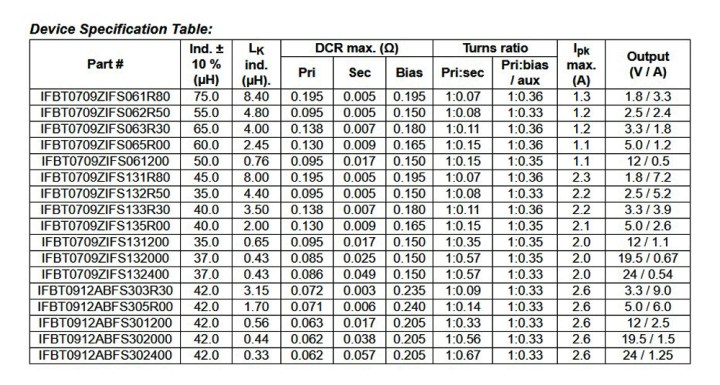

The transformers feature multiple windings, allowing for combinations of series and parallel connections to support different voltage and current handling configurations. This enables output voltages from 1.8V to 24V and output currents from 0.5A to 9A. Inductance values span 35 µH to 75 µH and operate over a temperature range of -40°C to +125°C.
Samples and production quantities of the IFBT series are available now, with lead times of 10 to 12 weeks. For greater gleanings, procure and peruse the IFBT series datasheets.
